We are Manufacturer, Supplier, Exporter of Decade Boxes or Decade RLC Boxes. We are specialized in Calibration Services of such products. Our setup is situated in Pune, Maharashtra, India.

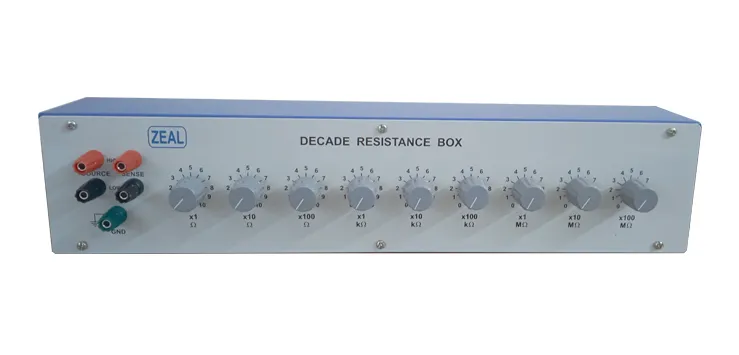

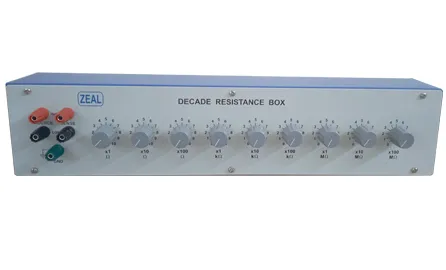

| Make | ZEAL |
| Model | ZMDRB |
| Decades Range | 1 Ω, 10 Ω, 100 Ω, 1 kΩ, 10 kΩ, 100 kΩ, 1 MΩ, 10 MΩ & 100 MΩ |
| Total Resistance Range | 1 Ω to 1111.11111 MΩ |
| Zero Resistance | < 60 mΩ |
| Basic Stability | 100 PPM for 10 Ω to 10 MΩ |
| Accuracy | 0.2% for : 1 Ω 0.1% for : 10 Ω, 100 Ω, 1 kΩ, 10 kΩ, 100 kΩ, 1MΩ & 10 MΩ 0.5% for : 100 MΩ |
| Weight | 2 kg. |

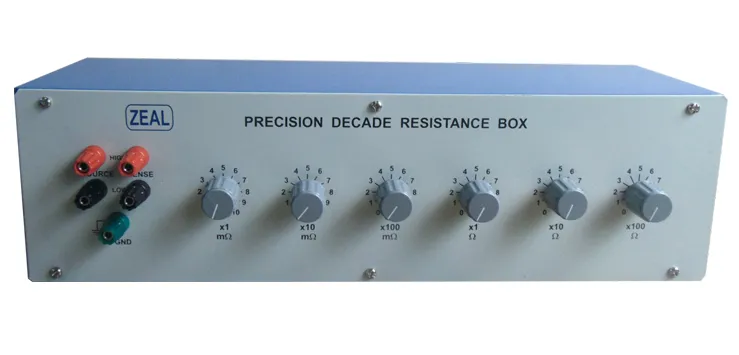

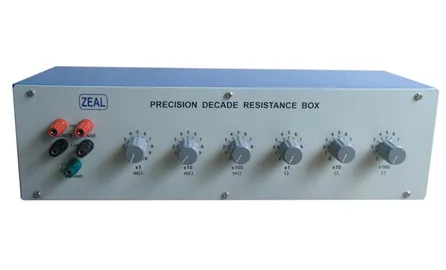

| Make | ZEAL |
| Model | ZMPDRB |
| Decades Range | 1 mΩ, 10 mΩ, 100mΩ, 1 Ω, 10 Ω & 100 Ω |
| Total Resistance Range | 1 mΩ to 1.11111 kΩ |
| Zero Resistance | < 10 mΩ |
| Basic Stability | 100 PPM |
| Accuracy | 5.0% for : 1 mΩ. 2.5% for : 10 mΩ. 1.5% for : 100 mΩ. 0.2% for : 1 Ω. 0.1% for : 10 Ω & 100 Ω. |
| Weight | 2 kg. |

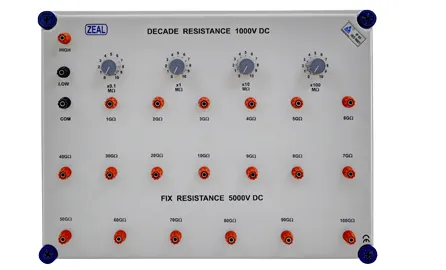

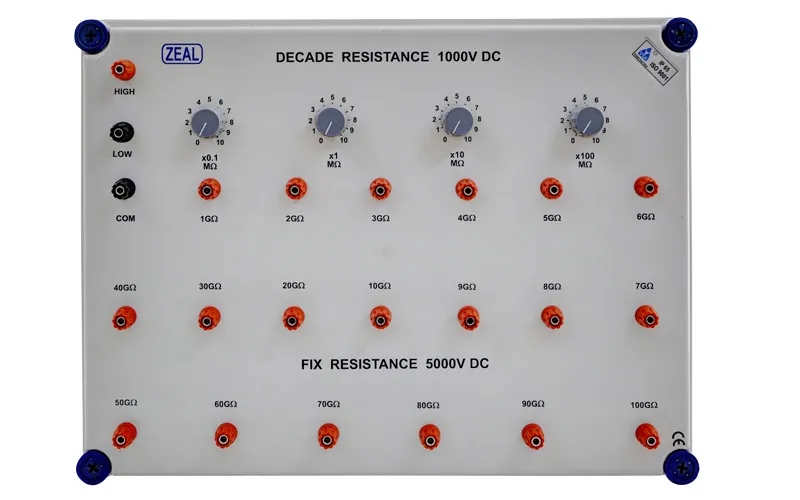

| Make | ZEAL |
| Model | ZMDRB-0.1M-100G |
| Specifications | Decades of 0.1 MΩ, 1 MΩ, 10 MΩ, 100 MΩ Fixed Resistors : 1 GΩ, 2 GΩ, 3 GΩ 4 GΩ, 5 GΩ, 6 GΩ, 7 GΩ, 8 GΩ, 9 GΩ, 10GΩ, 20 GΩ, 30 GΩ, 40 GΩ, 50 GΩ, 60 GΩ, 70 GΩ, 80 GΩ, 90 GΩ, 100 GΩ |
| Accuracy | ± 5% for all decades and fixed resistors 10 Fix resistors 1 GΩ x 10 in series mounted on acrylic 10 Fix resistors 10GΩ x10 in series mounted on acrylic |
| Test Voltage | 1000V : for 0.1 M Ω,1 M Ω,10 M Ω, 100 MΩ 5000V : for all fixed resistors Dials of 0.1 MΩ, 1 MΩ, 10 MΩ, and 100 MΩ can be used at 5000V when connected in series with any fixed resistor |
| Power Rating | 1 Watt @ 500C |

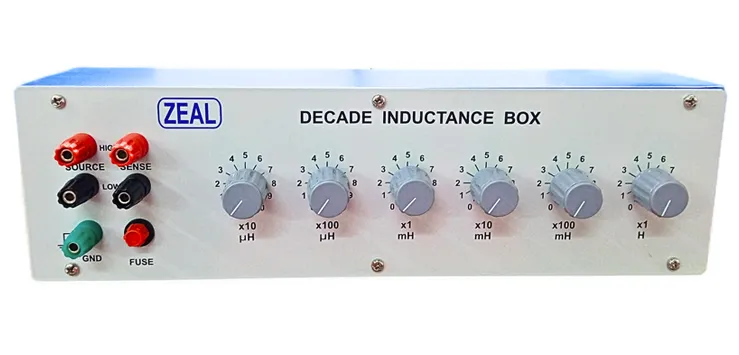

| Make | ZEAL |
| Model | ZMDIB |
| Specifications | Decades of 10μH, 100μH, 1mH, 10mH, 100mH, 1H |
| Total Inductance range | 10 μH to 1H |
| Accuracy | 1% at 1 kHz |
| Residual Inductance | < 1 μH |
| Make | ZEAL |
| Model | ZMDCB |
| Specifications | Decades of 1nF, 10nF, 100nF, 1μF, 10μF |
| Total capacitance Range | 111.111 μF |
| Accuracy | 1% at 1 kHz |
| Residual Capacitance | < 15 pF |
Note : We Can Upgrade Products With Time To Give Improved Quality
