We are Manufacturer, Supplier, Exporter of Insulation Resistance Tester. This product also known as Mega Ohm Meters, Terra Ohm Meters, Resistance Meters, Insulation Testers and we are also specialized in Calibration Services. Our setup is situated in Pune, Maharashtra, India.

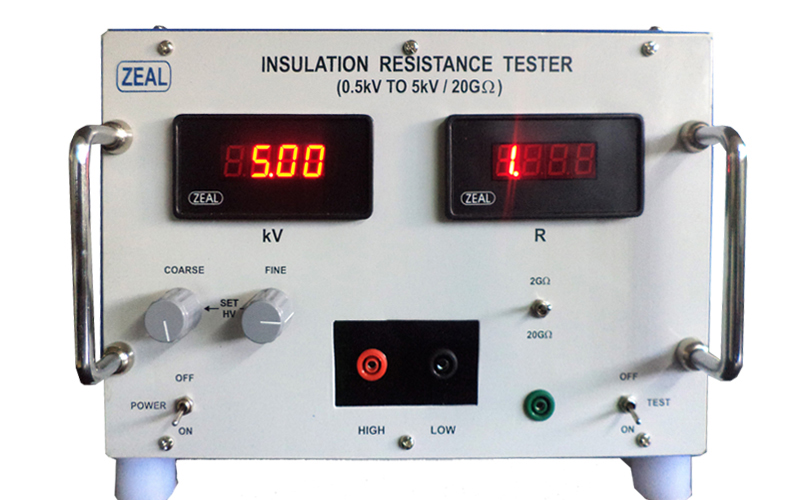

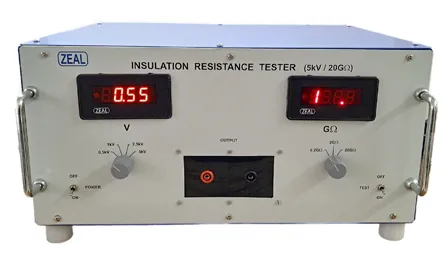

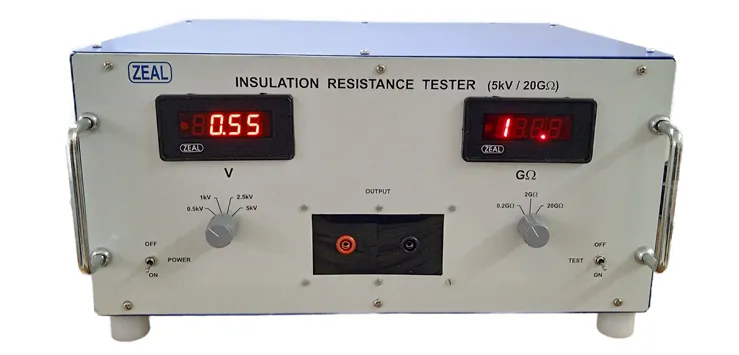

| Make | ZEAL |
| Model | ZMIRT5kV |
| Power | 230V AC, ± 10 %, 50 Hz |
| Test Voltage | 0.50 kV to 5.00 kV DC ( Regulated ) |
| Test Voltage setting by coarse and fine potentiometers | |
| Resistance measurement Ranges | 0 - 2.00 G Ω, 20.00 G Ω |
| Range selection by toggle switch | |
| Metering | Digital 3½ digit 7 segment display for Voltage and Resistance meter |
| Accuracy | V : 1% of reading ±5 digit @ 100MΩ, GΩ : 1.5% of FS ±3 digit |
| Accessory | Banana to crocodile ( Fully insulated ) Hi, Lo & Guard |
| Protection | Against short circuit. |

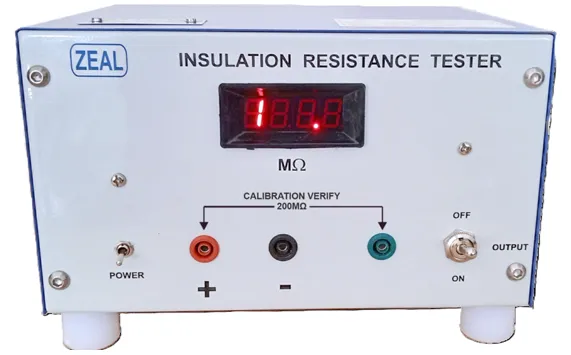

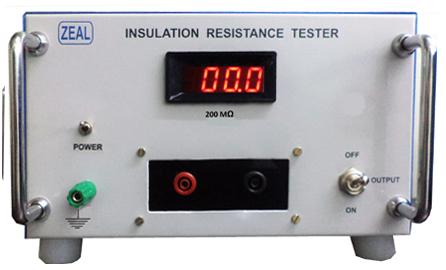

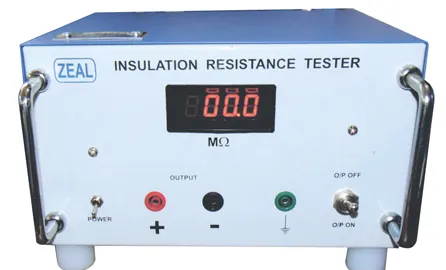

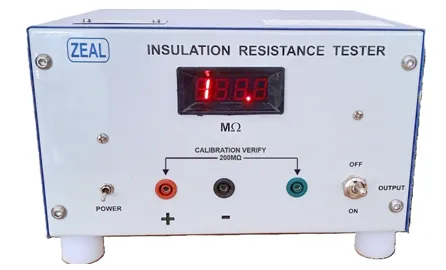

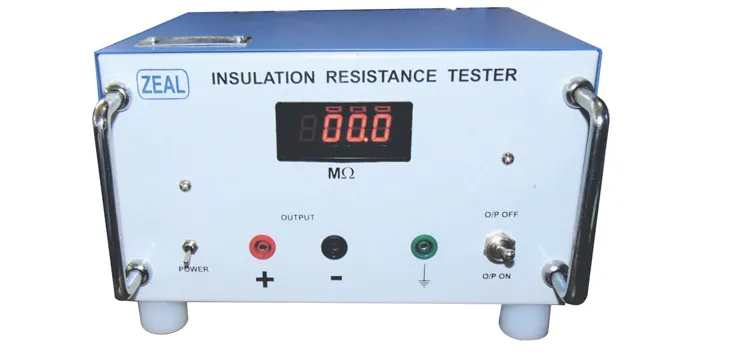

Make |
ZEAL |
Model |
ZMIRT |
Power |
230V AC, ± 10 %, 50 Hz
|
Test Voltage
|
500V DC or 1000 V DC |
Resistance measurement Ranges |
200MΩ, 2000MΩ |
Range selection by toggle switch |
|
Metering |
Digital 3½ digit 7 segment display for Resistance |
Accuracy |
Test voltage : 1.5% @ 100MΩ, M Ω indication : 1.5% of FS ± 3 digit |
Accessory |
Banana to crocodile ( Fully insulated ) Hi, Lo & Guard |
Note : We Can Upgrade Products With Time To Give Improved Quality
