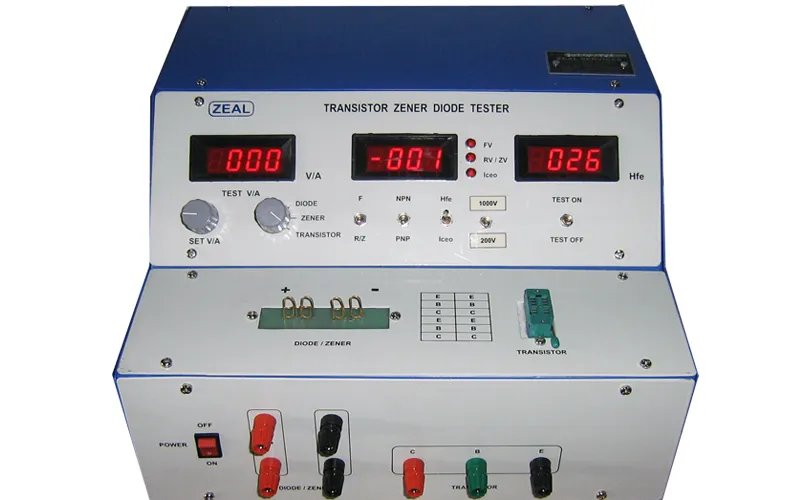

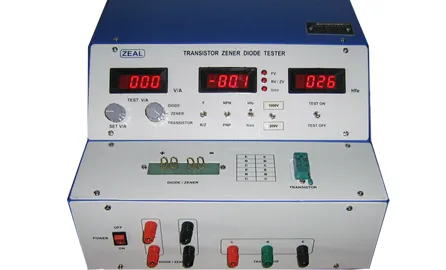

We are Manufacturer, Supplier, Exporter of Transistor, Zener Diode Tester and we are also specialized in Calibration Services. Our setup is situated in Pune, Maharashtra, India.
| Make | ZEAL |
| Model | ZMTZDT |
| Input Power | 230 VAC, 50 Hz / 110 VAC, 60 Hz |
| Hfe Measurement | |
| Test Voltage Range | 5.60 Volt VCC |
| Base Current | 8µA |
| Accuracy of Hfe | 1.5% |
| Ice Measurement | |
| Test Voltage Range | 0 to 200 VDC |
| Leakage Current Range | 2000µ |
| Accuracy | 1% |
| Diode Forward Drop Measurement | |
| Test Current Range | 0 to 10A DC |
| Forward drop Voltage Range | 2 VDC |
| Accuracy | 1% |
| Diode Reverse Voltage Breakdown Measurement | |
| Test Voltage Range | 0 to 1000 VDC |
| Acceptable Leakage Current Range | 1 mA DC |
| Accuracy | 1% |
| Zener Voltage Measurement | |
| Test Voltage Range | 2 to 1000 V DC at 20µA max. |
| Accuracy | 1% |
| Metering | 3½ Digit 7 Segment Display |
Note : We Can Upgrade Products With Time To Give Improved Quality
