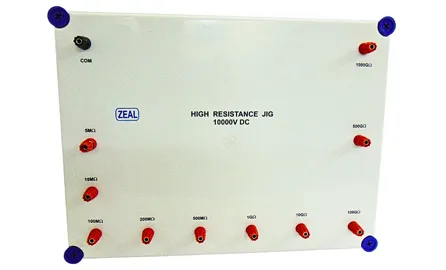

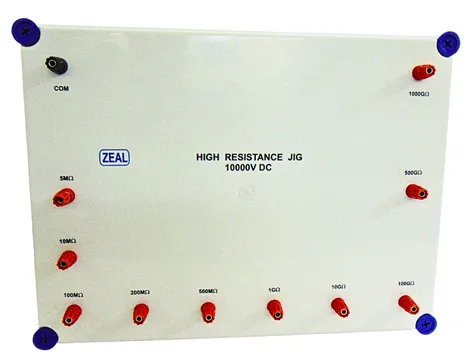

High Resistance Jigs

We are Manufacturer, Supplier, Exporter of High Resistance Jig, 4 Wire Low Resistance Standards, Low Resistance Standards, Manufacturer, Supplier, Exporter, Pune, Maharashtra, India

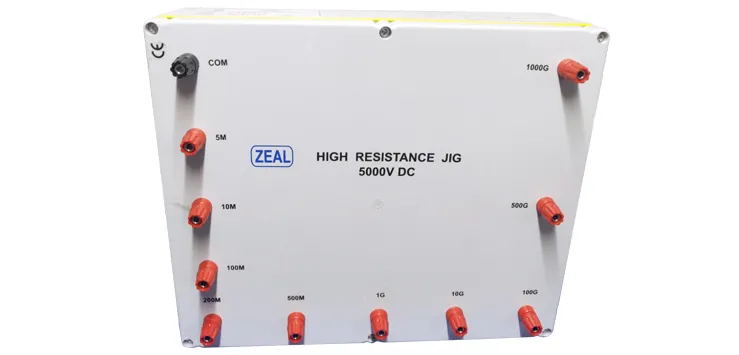

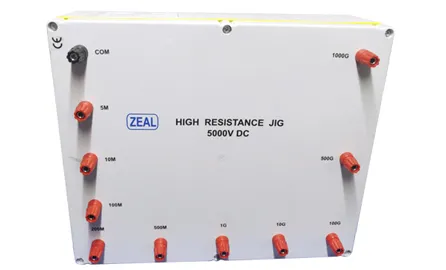

Make	ZEAL
Model	ZMHRJ - 5M - 1000GΩ
Description : Ranges	5MΩ, 10MΩ, 100MΩ, 200MΩ, 500MΩ, 1GΩ, 10GΩ, 100GΩ, 1000GΩ Max DC Test Voltage : 5000V
Max DC Test Voltage	5000V
Accuracy	2% for : 5 MΩ, 10 MΩ, 100 MΩ, 200 MΩ, 500 MΩ, 1 GΩ, 10 GΩ 5% for : 100 GΩ & 1000 GΩ.

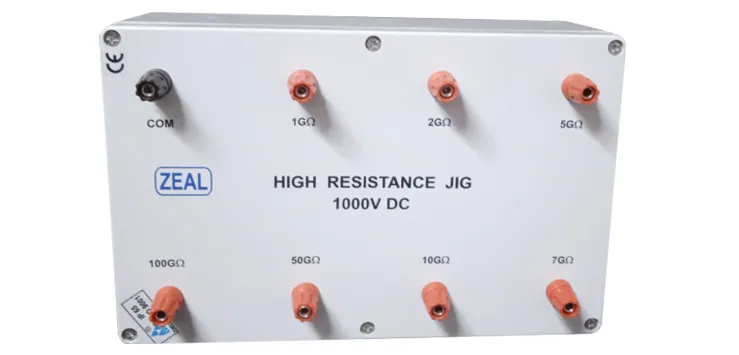

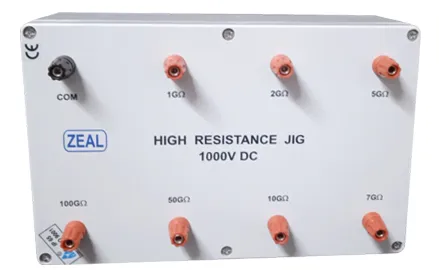

Make	ZEAL
Model	ZMHRJ1G-100G
Description : Ranges	1GΩ, 2GΩ, 5GΩ, 7GΩ, 10GΩ, 50GΩ, 100GΩ
Max DC Test Voltage	1000V
Accuracy	2%
