Single Phase Power Energy Meter Calibrators / Watt Meter Calibrators

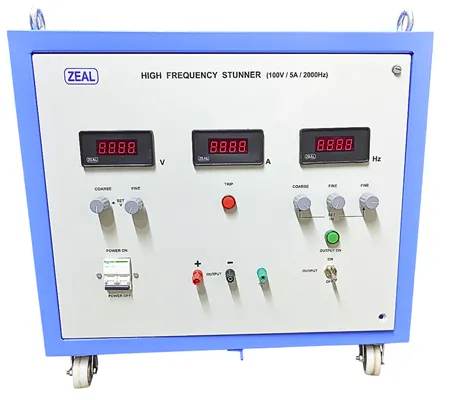

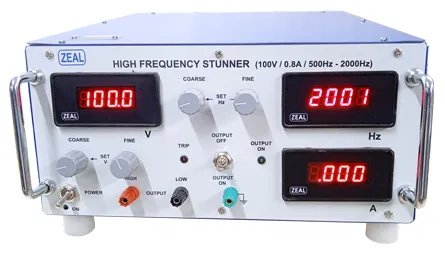

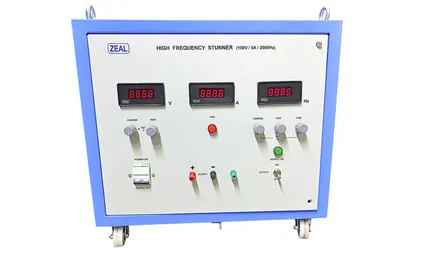

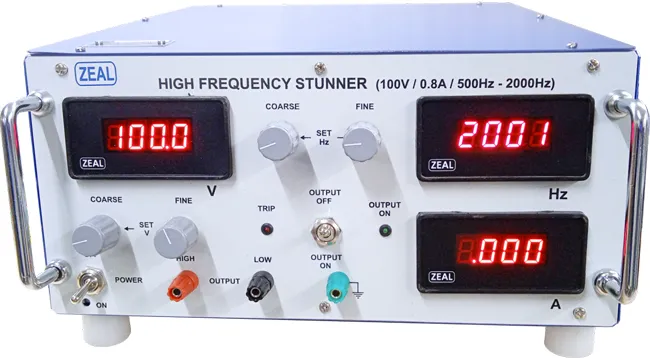

High Frequency Stunner

We are Manufacturer, Supplier, Exporter of AC / DC Variable Current / Variable Frequency Source and we are also specialized in Calibration Services ( Calibrator ). Our setup is situated in Pune, Maharashtra, India.

Make
ZEAL
Input Power 230 Volt ±10% AC, 50 Hz
Output Voltage Range
5 to 200 V (Sine wave)
Max Current
5 Amps (with overload protection)
Compliance
1000 VA, at FS of each range
Metering
AC Ammeter, Frequency meter
Output Frequency Range
50 to 2000 Hz.
Meters
4-digit AC voltmeter,
4-digit frequency meter
4-digit AC Current meter with 2 ranges (range1: 2A, range2: 5A)
Accuracy of V
1.5% ± 10digit, Resolution: 0.1 V
Accuracy of Hz
± 2digit, Resolution: 0.1 Hz
Accuracy of A:
1 % ±3, digit,
Protection:
Against Overload & Short circuit with trip indication by LED
Controls:
Range selection by toggle switch on panel
Power ON/OFF by toggle switch on panel
Setting of Voltage & Frequency and Current:
By Multi turn potentiometers
