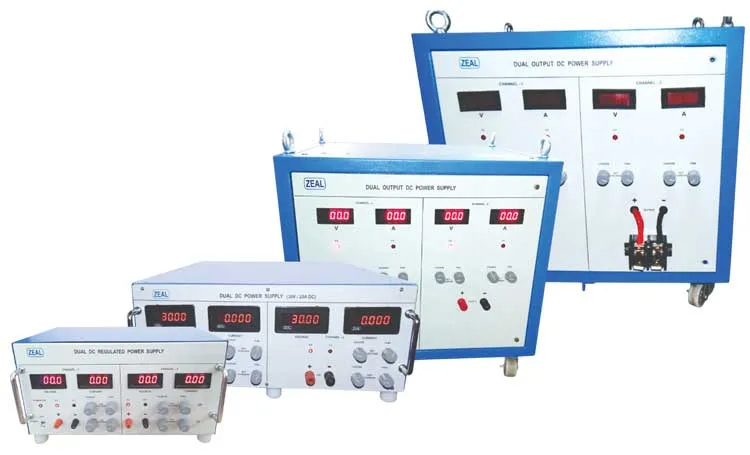

Dual DC Regulated Power Supply ( Power Supplies )

Dual DC Regulated Power Supply ( Power Supplies )

We are Manufacturer, Supplier, Exporter of Dual DC Regulated Power Supply and we are also specialized in Calibration Services. Our setup is situated in Pune, Maharashtra, India.

Technical Specification

Make
Zeal
Model
ZM2PS
Input Power Requirement
230V AC  ±10%, 50Hz
Load Regulation
 ±0.1%
Line Regulation
 ±0.1%
Ripple & Noise
 ±0.1% rms
Accuracy
 ±0.5%,  ±3 digit
Display
 3½ digit 7 segment red LED display for Voltage Output
3½ digit 7 segment red LED display for Current Output
Controls
 Voltage and Current setting by coarse & fine potentiometer
Power ON/OFF switch
Protection
 Protection against overload & short circuit by CC mode

Note : DC Regulated Power Supplies can be designed to meet the standard operating voltage and frequency requirements for your country.


Typical Ranges Are Available

Input Power 230V ±10% 50Hz Single Phase Input Power : 415V ±10% 50 Hz 3 Phase 4 Wire
Model Rating Model Rating
ZM2PS15-50-15V / 0-5AZMPS30-1500-30V / 150A
ZM2PS30-20-30V / 0-2AZMPS30-2000-30V / 200A
ZM2PS30-50-30V / 0-5AZMPS30-4000-30V / 400A
ZM2PS30-100-30V / 0-10AZMPS50-80A0-50V / 80A
ZM2PS30-150-30V / 0-15AZMPS50-100A0-50V / 100A
ZM2PS30-200-30V / 0-20AZMPS50-200A0-50V / 200A
ZM2PS30-250-30V / 0-25AZMPS60-60A0-60V / 60A
ZM2PS30-300-30V / 0-30AZMPS60-100A0-60V / 100A
ZM2PS30-500-30V / 0-50AZMPS60-200A0-60V / 200A
ZM2PS60-50-60V / 0-5AZMPS60-400A0-60V / 400A
ZM2PS60-100-60V / 0-10AZMPS80-50A0-80V / 50A
ZM2PS60-150-60V / 0-15AZMPS80-80A0-80V / 80A
ZM2PS60-200-60V / 0-20AZMPS80-100A0-80V / 100A
ZM2PS60-300-60V / 0-30AZMPS100-50A0-100V / 50A
ZM2PS60-500-60V / 0-50AZMPS100-100A0-100V / 100A
ZM2PS100-50-100V / 0-5AZMPS100-200A0-100V / 200A
ZM2PS100-100-100V / 0-10AZMPS150-30A0-150V / 30A
ZM2PS100-200-100V / 0-20AZMPS150-50A0-150V / 50A
ZM2PS300-20-300V / 0-2AZMPS200-15A0-200V / 15A
ZM2PS300-50-300V / 0-5AZMPS200-30A0-200V / 30A
ZM2PS300-100-300V / 0-10AZMPS300-10A0-300V / 10A
ZM2PS500-20-500V / 0-2AZMPS300-20A0-300V / 20A
ZM2PS500-50-500V / 0-5AZMPS500-5A0-500V / 5A
ZM2PS1000-2A0-100V / 0-2AZMPS1000-5A0-1000V / 5A
