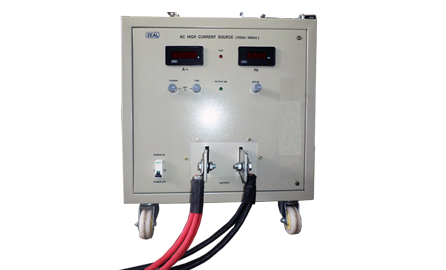

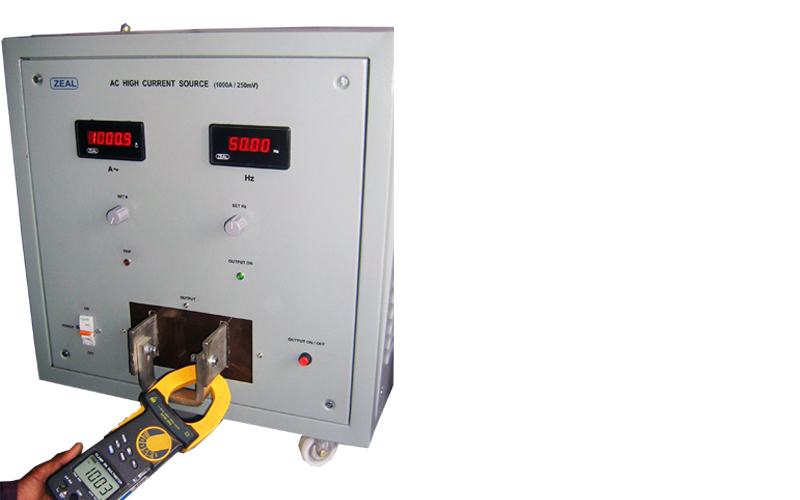

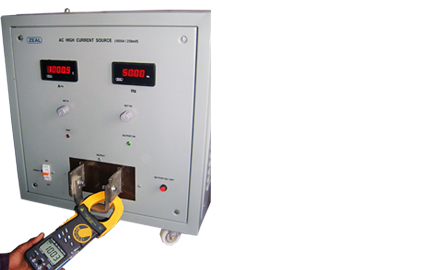

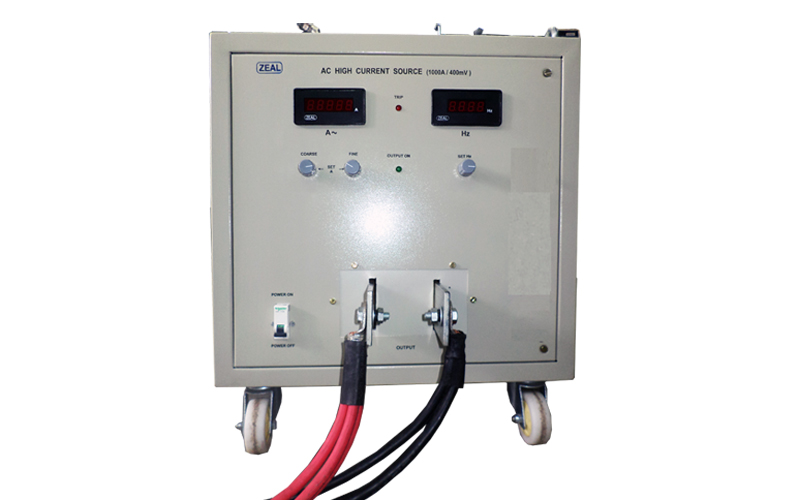

We are Manufacturer, Supplier, Exporter of AC Current Source. This product also known as AC High Current Source, High Current Source, Variable Current Source. We are also specialized in Calibration Services ( Calibrator ). Our setup is situated in Pune, Maharashtra, India.
| Make | ZEAL |
| Model | ZMAC2000 |
| Input Power | 415V AC Phase to phase, 50Hz, 3Phase 4Wire |
| Output Range | 0 to 2000AAC or as per customer's requirement |
| Stability | Better than 1% |
| VA capacity | 20000VA ( Maximum ) or as per customer's requiremnt for continuous duty |
| Metering | AC Ammeter, Frequency meter |
| Resolution of ammeter | 4.5 digits |
| Accuracy of ammeter | Better than 1% of full scale |
| Resolution of frequency meter | 0.01Hz |
| Accuracy of frequency meter | ± 2 digits setting of current by set of coarse and fine multi turn potentiometers |
| Protection | Against overburden and over temperature MS Enclosure with power coating with castor wheels. Suitable termination for output high current. |
| Operating Temp | 200C to 500C with Suitable high current cables of sufficient lengths having lugs |
