We are Manufacturer, Supplier, Exporter of Oil Breakdown Tester and we are also specialized in Calibration Services. Our setup is situated in Pune, Maharashtra, India.

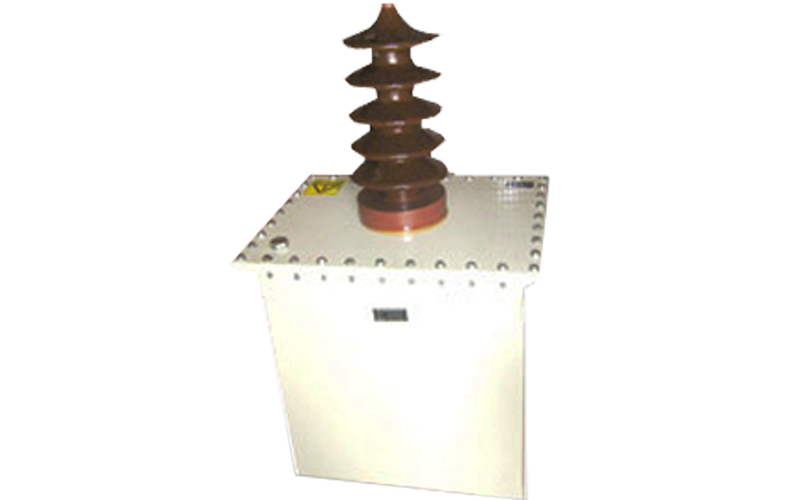

Oil Test Set is an equipment-designed and produced to test the Electrical Strength of Liquid Insulating Materials such as Transformer Oil, Capacitor Oil etc. The test set carries out test on these materials as per Indian Standard Specification IS 6792. This Oil Test Set is essential for Transformer & Switchgear Manufacturers, also for oil filtration units.

Technical Specification

Make	ZEAL
Input	230/240 Volts 1 Ph 50 Hz AC
Output	0 - 100 kV Center Tap Earthed - Motorised & Manually Operated
Capacity	1 KVA
Indication	Mains ‘ON’ & ‘HT ON’ Lamps
Metering	Analog Voltmeter to Monitor Output Voltage or 3 ^1/2 Digit Digital AC Voltmeter

Note : Model Of Other Voltage Rating Can Be Supplied As Per Demand

Protection

Zero Inter-Locking Arrangement Transparent Hood (Cover) on TEST CUP with door interlocking micro switch
Electronic Fast Acting Over Current Tripping device sensing HT Current directly.

Features :

Resin Encapsulated HT Transformer
Transparent High Impact Methyle Mathacrylate (ACRYLIC) Test Cup
Removable Mushroom Head Electrode (IS: 6792 & IEC: 156)
Duly Hardened Alloy Steel GO & NO GO gauge
Motorised cum Manual Operation
Unit Housed in Portable Air Cooled Metal Casing.

Note : We Can Upgrade Products With Time To Give Improved Quality
